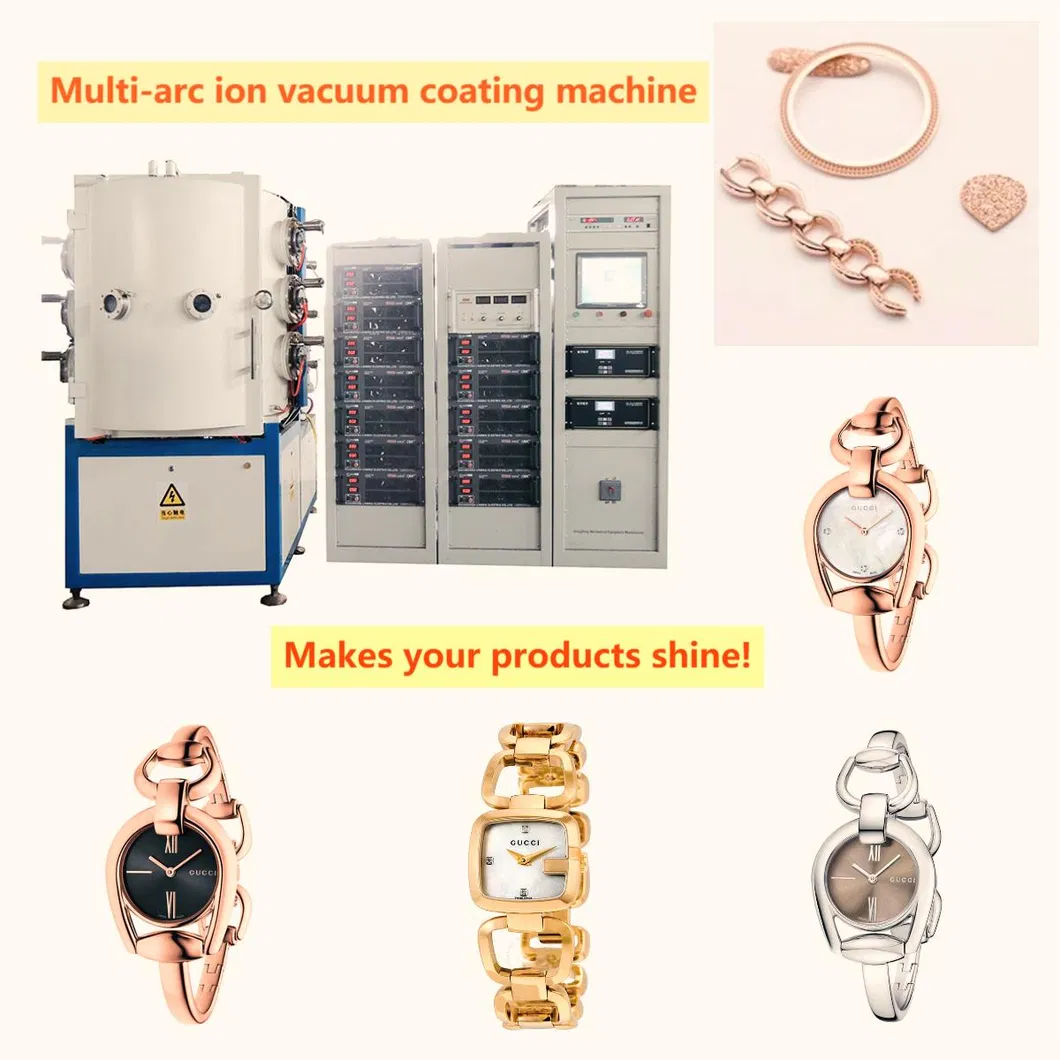

A high-tech environmental friendly product for metal, glass, and surface coating. This system improves workpiece hardness, wear resistance, and corrosion resistance across various industries including watchmaking, ceramics, hardware, and automotive sectors.

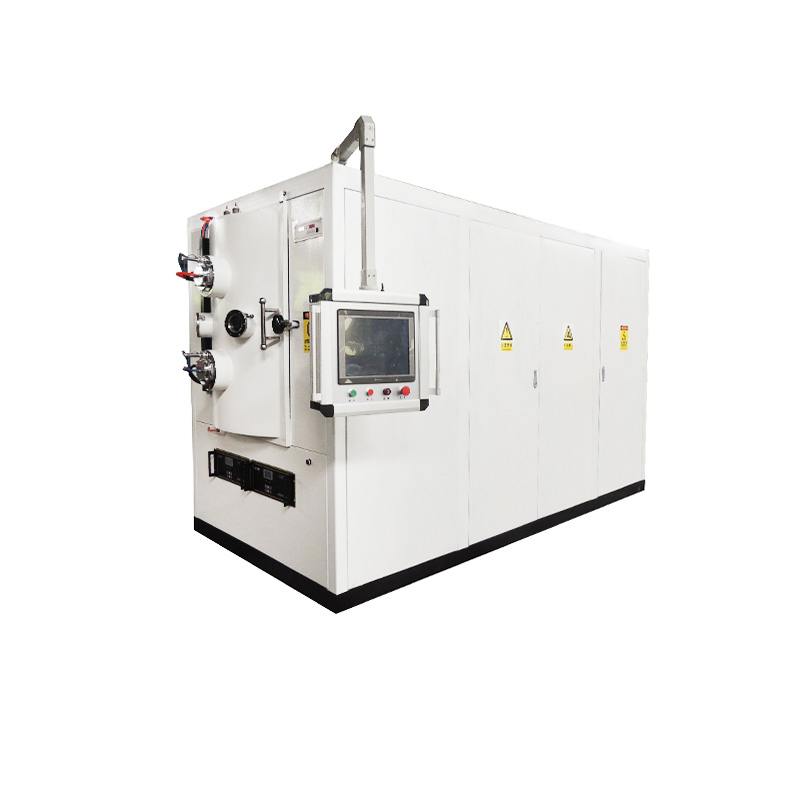

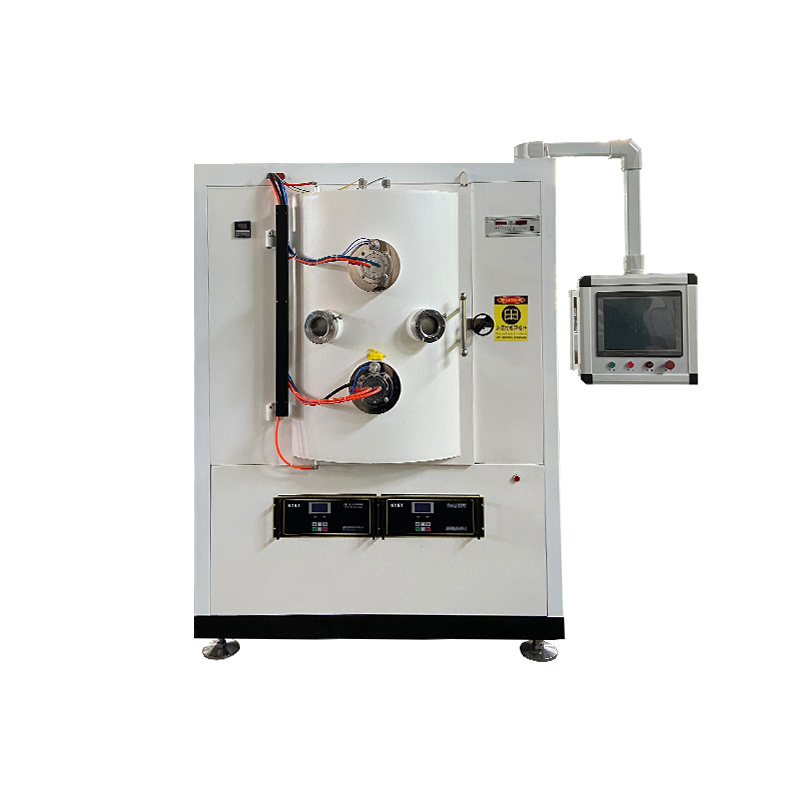

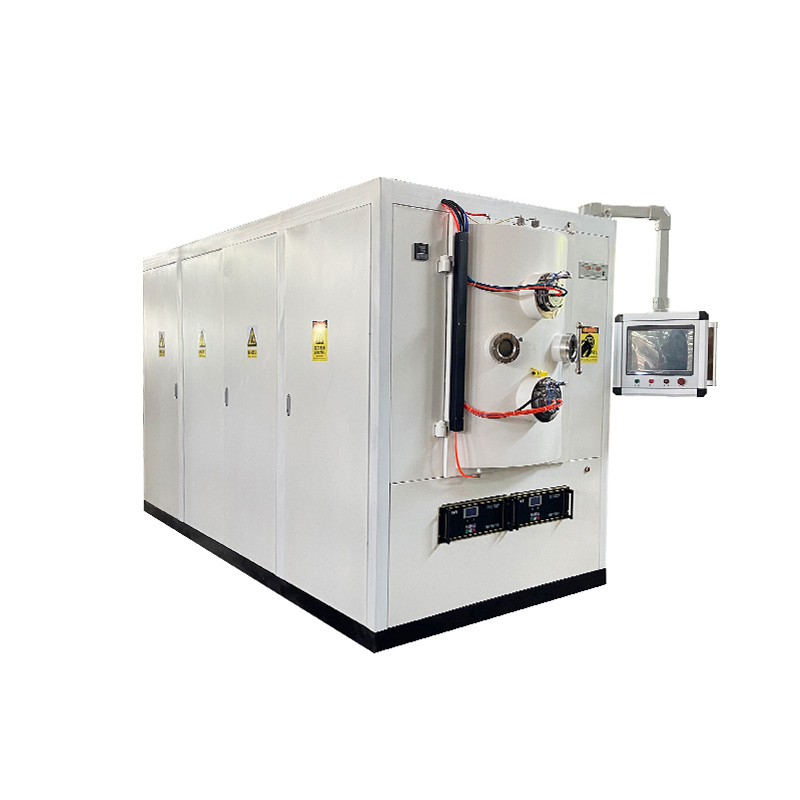

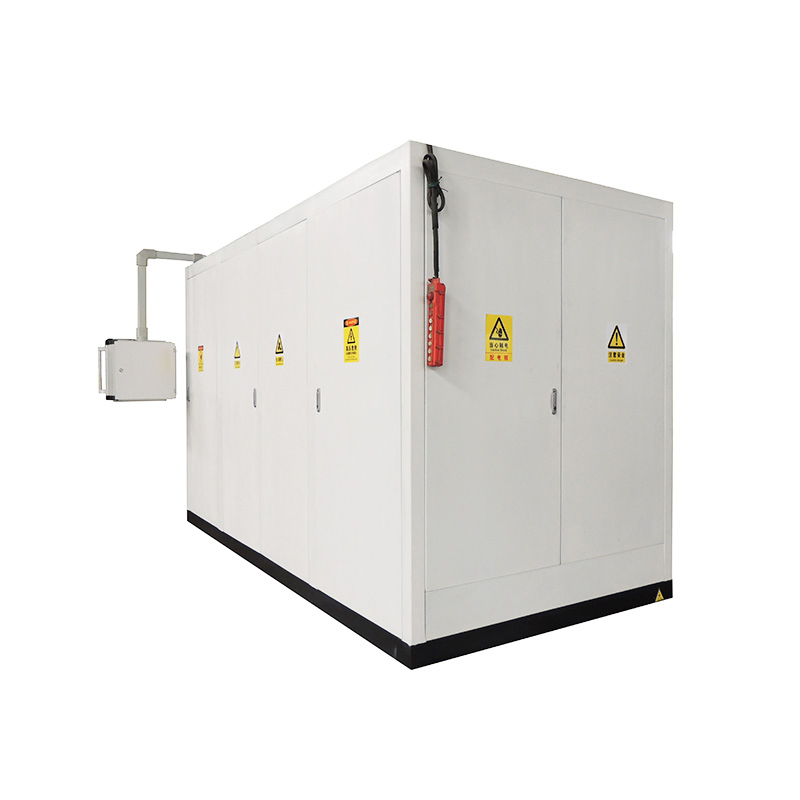

The ARC series, based on arc deposition technology, is the most suitable coating system for producing PVD hard coatings on metal tools, molds, and dies. It provides a durable finish that makes product surfaces both beautiful and wearable.
| Parameter | Specifications |
|---|---|
| Vacuum Chamber | SUS304, φ600mm-1200×600-1200mm (H) |
| Substrate Dome Rotation | 10 rpm to 50 rpm (Variable) |
| Arc Evaporation Source | From 2 to 16 sets |
| Ultimate Pressure | 5.0×10⁻⁴ Pa or lower |
| Pump Down Rate | 25 minutes (Atm. to 5.0×10⁻³ Pa) |
| Substrate Heater | Up to 550°C (max) |
| Requirement | Details |
|---|---|
| Layout Dimensions | Approx. 5000mm (W)×6500mm (D)×3500mm (H) |
| Power Requirements | 3-phase, 380V, 50/60Hz, 100-180kVA approx. |
| Cooling Water Flow Rate | 140L/min. or greater |
| Compressed Air Pressure | 0.5MPa or higher |
| Gross Weight | Approx. 8500kg |

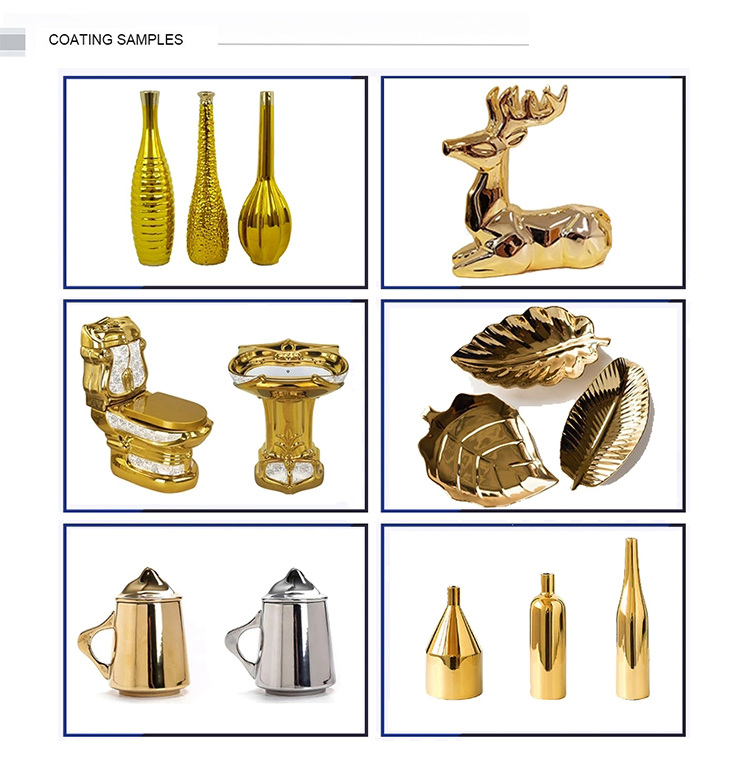

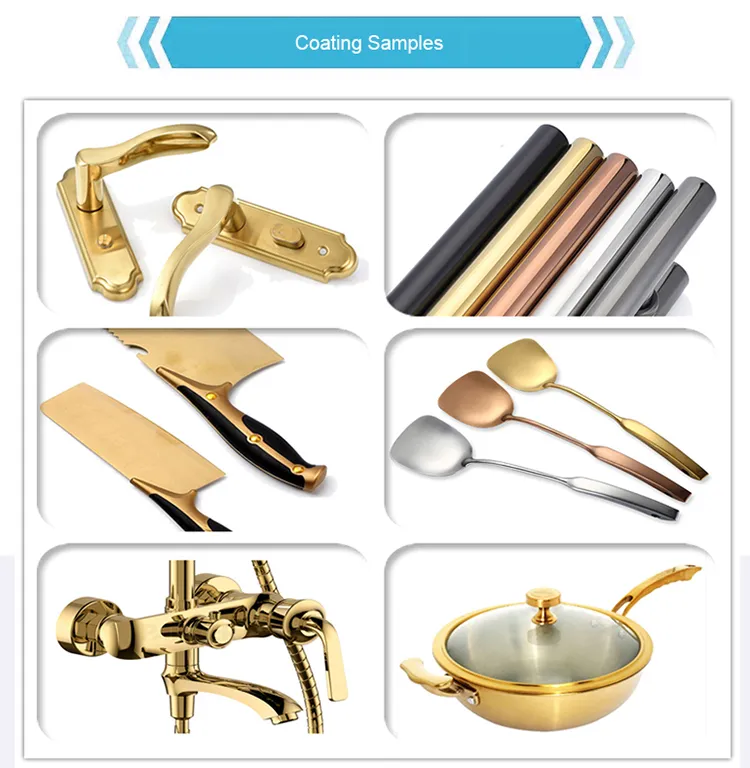

This equipment is widely used for functional and decorative coatings. Common processing materials include stainless steel, carbide, and various alloys for tools, molds, and consumer goods.
