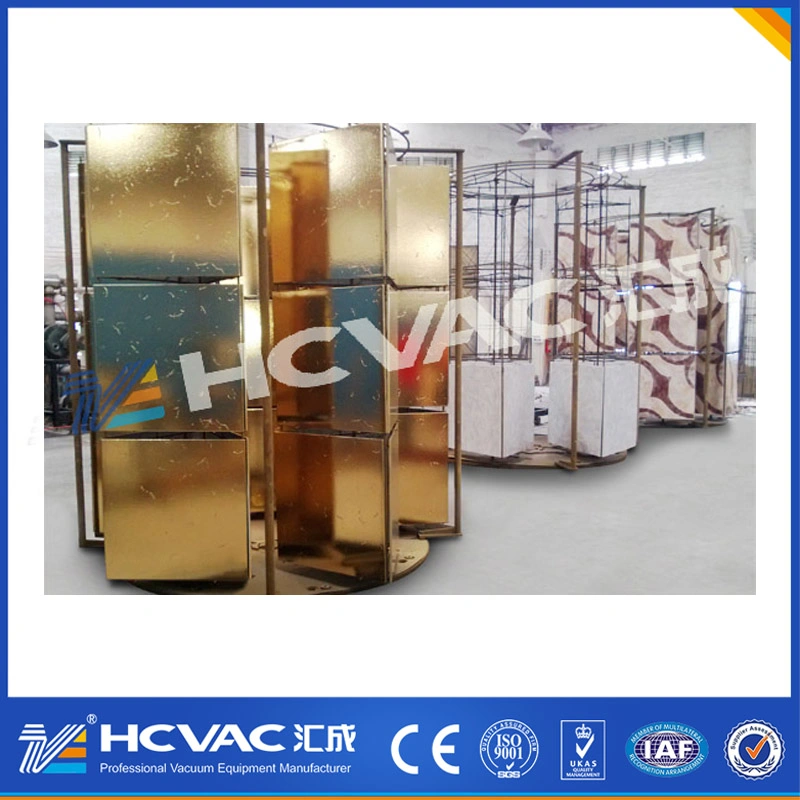

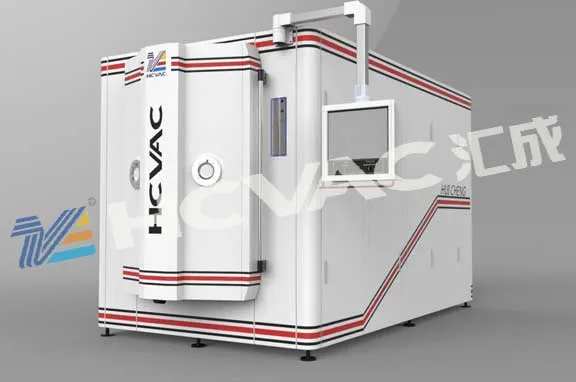

Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
1 / 5
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System

Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System

Customization: Available
After-sales Service: Free Installing and Training, Technical Support
Warranty: One Year Limited Warranty
Send Inquiry

Product Description

Basic Specifications
Model NO.
LH-
Type
PVD Vacuum Coating Machine
Technology
Physical Vapor Deposition, Cathode Arc Ion Coating
Substrate
Steel, Ceramic, Glass
Certification
CE, ISO
Control System
Manual/Automatic All-in-One (PLC Touch Screen)
Coating Color
Gold, Rosegold, Silver, Black, Blue etc.
Chamber Material
Stainless Steel
Product Description

Floor Wall Ceramic Tile PVD Ion Deposition Machine is a high-efficiency titanium gold vacuum plating system. This equipment is specifically designed to coat ceramic tiles, tableware, porcelain tiles, floor tiles, and glass mosaics. Beyond ceramics, it is also capable of coating metal and glass products effectively.

Key Benefit: This system replaces traditional paint gold methods, significantly enhancing adhesion, saving production costs, and improving overall efficiency. It is harmless and pollution-free.
Technical Characteristics:

The principle integrates cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology. This process thins particles to improve film properties, allowing for high-quality coating on both metal and nonmetal surfaces.

Applied Industries:
  • Ultra-hard coatings for tools and molds.
  • Decorative coatings for car wheels, ceramics, and golf equipment.
  • Sanitary ware, luminaires, hotel products, and hardware.
  • Watches making and optical frames.
Equipment Display

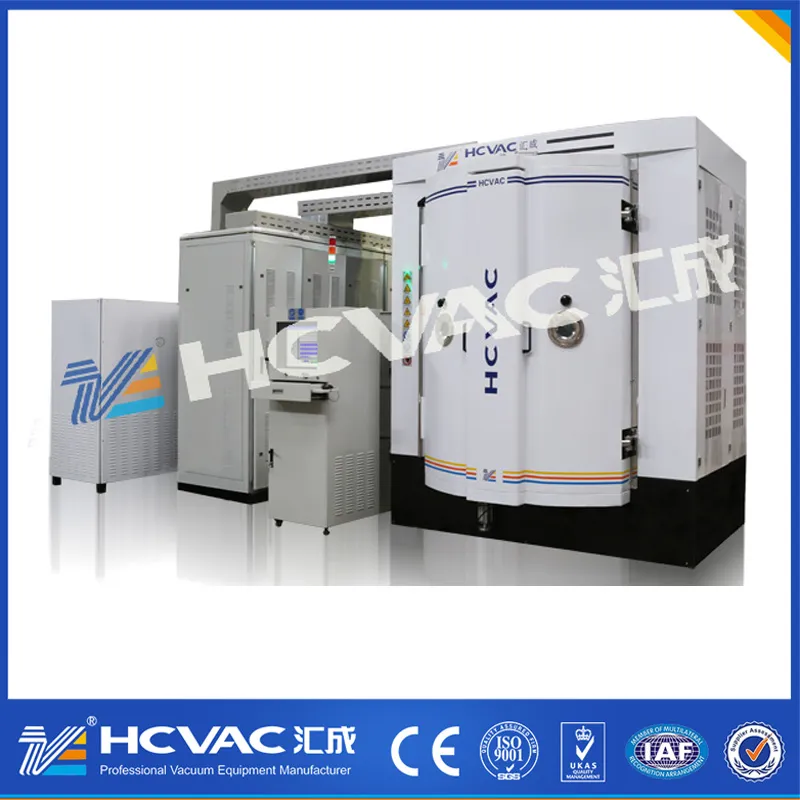

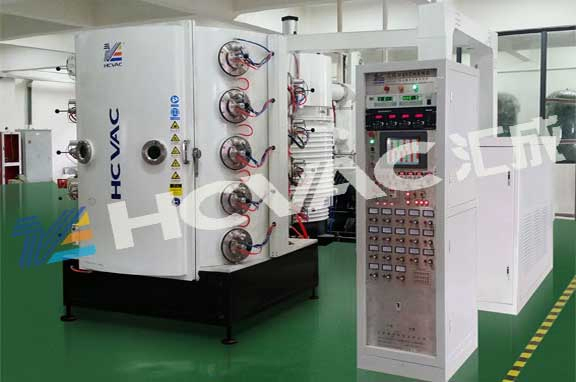

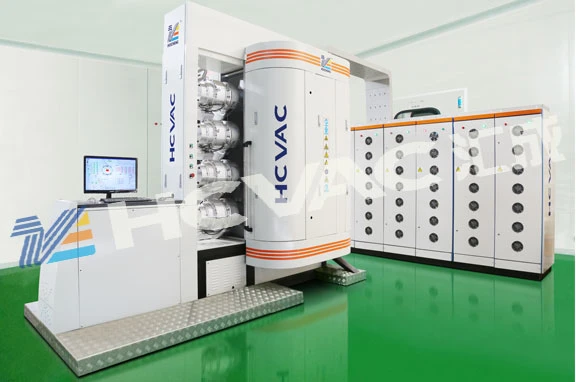

PVD Ion Deposition Machine

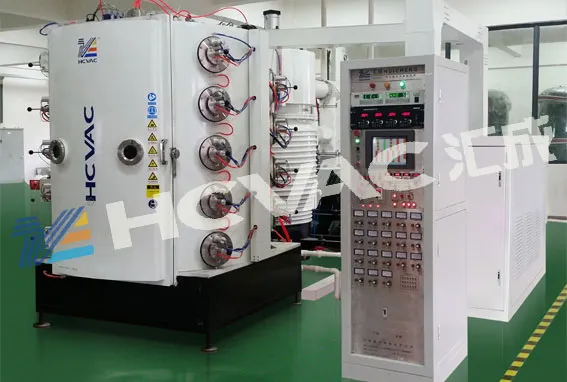

Vacuum Plating System Detail
Coating Samples

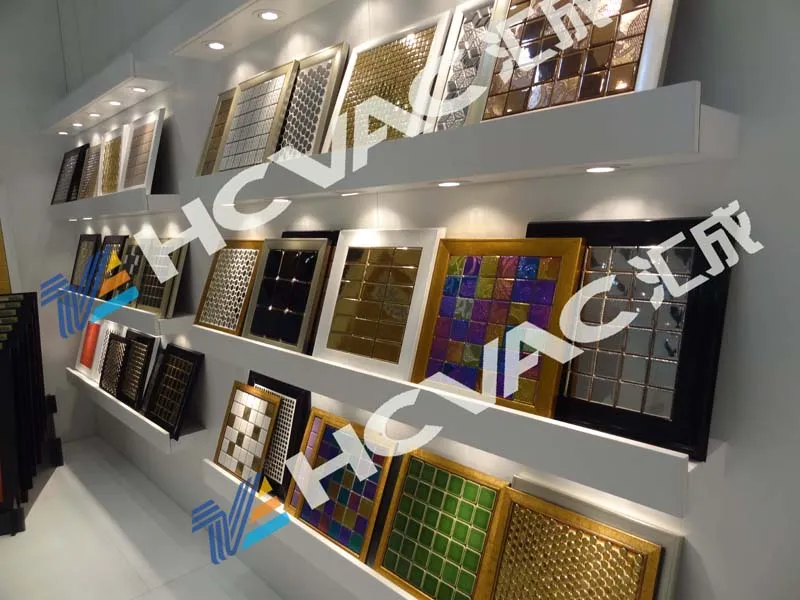

Ceramic Tile Sample

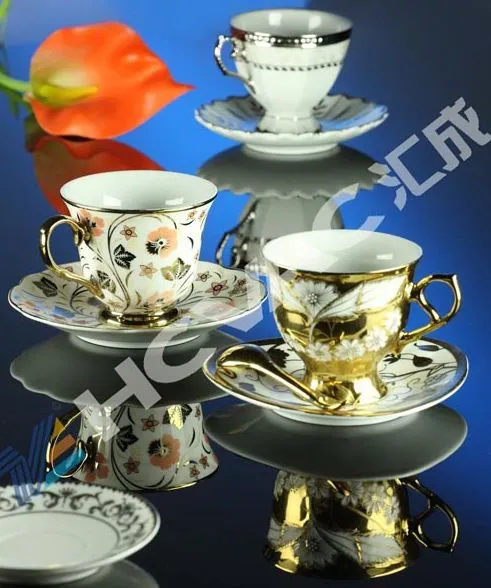

Coated Product Sample

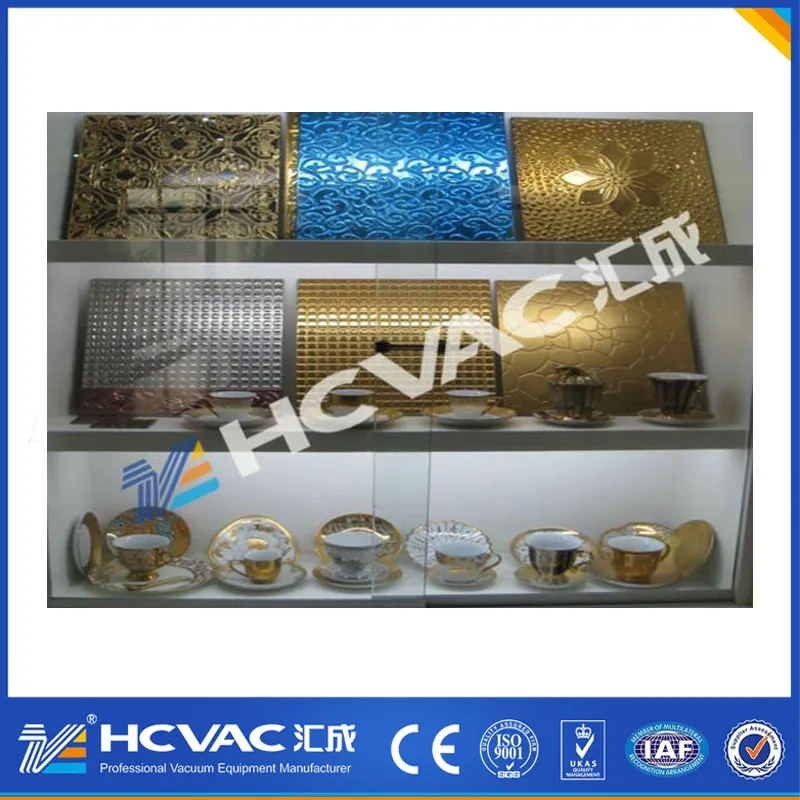

PVD Color Sample
Color Palette

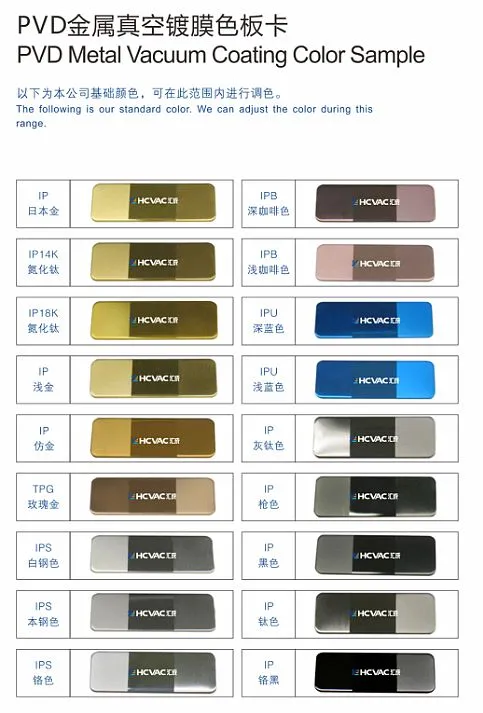

PVD Coating Color Range
Technical Parameters
Specification LH-800 LH-1250 LH-1416 LH-1618
Dimension 800*1000mm 1200*1500mm 1400*1600mm 1600*1800mm
Multi-arc Targets 8 Targets 12 Targets 14 Targets 20 Targets
Power Source Electric-arc power, Filament power, Pulsed bias power supply
Vacuum System Molecule/Diffusion pump + Roots pump + Mechanical pump
Control Mode Manual / Automatic / PLC + HMI / PC
Baking Temp. Normal to 350°C PID control, radiation heating
Frequently Asked Questions
What materials can be coated with this PVD machine?
The machine is versatile and can coat ceramic tiles, tableware, glass products, and various metals such as steel.
What are the main benefits of PVD coating over traditional painting?
PVD coating offers superior adhesion, is more environmentally friendly (harmless and pollution-free), and significantly reduces production costs while improving efficiency.
What colors can be achieved using the ion deposition process?
Commonly produced colors include Gold (TiN), Silver (Ti), Rose Gold, Black, Blue, and various other compound film colors.
Is the operation of the machine difficult for new users?
No, the machine features a Manual/Automatic All-in-One control system with a PLC touch screen, making it user-friendly and easy to implement.
Can the equipment dimensions be customized?
Yes, we can design the dimensions of the equipment according to specific technical requirements and production needs of the customer.
How efficient is the production capacity?
The machine features fast deposition rates and high ionization rates. Large-scale models are capable of coating up to 1500 square meters per day.
