Magnesium Aluminum Zinc Ground Mounting Systems For Solar Panels
The solar ground mounting bracket is strictly designed according to the maximum wind speed, maximum snow load, solar panel specifications and other design schemes. While ensuring sufficient strength, installation efficiency and labor costs are optimized. The system ensures long service life with support foundations including straight into the ground, ground screws, and cement piers.

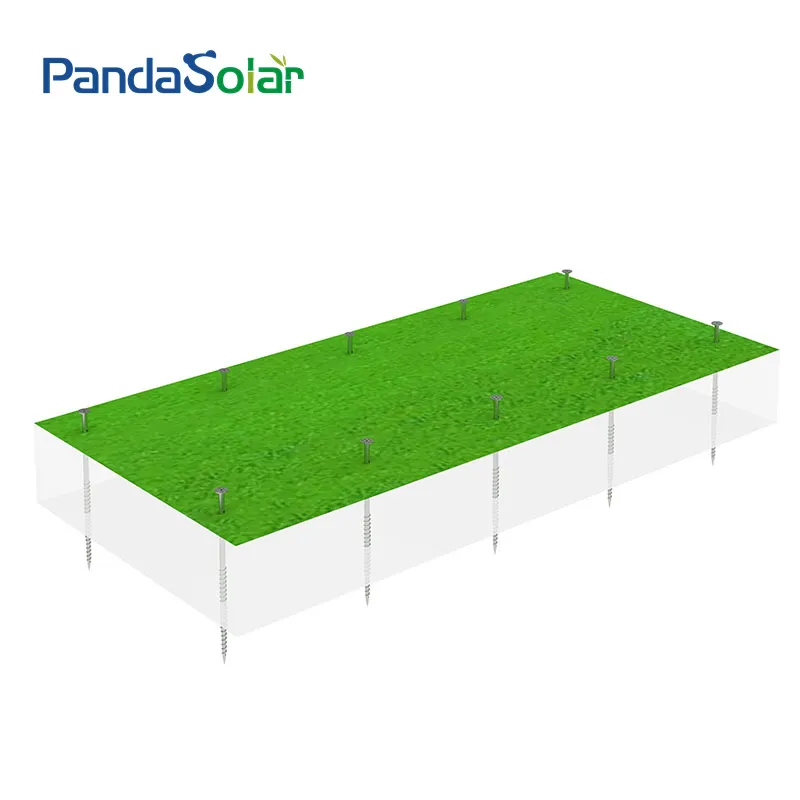

The first step is to install the ground screws used to anchor the support structure. Screws are drilled into the soil using specialized equipment based on soil type and weight requirements.

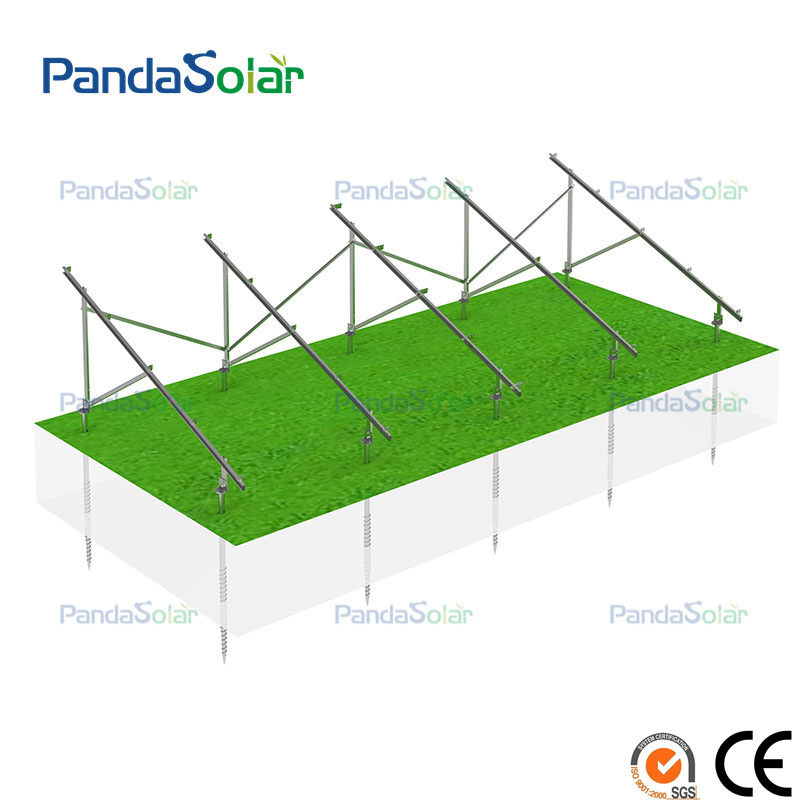

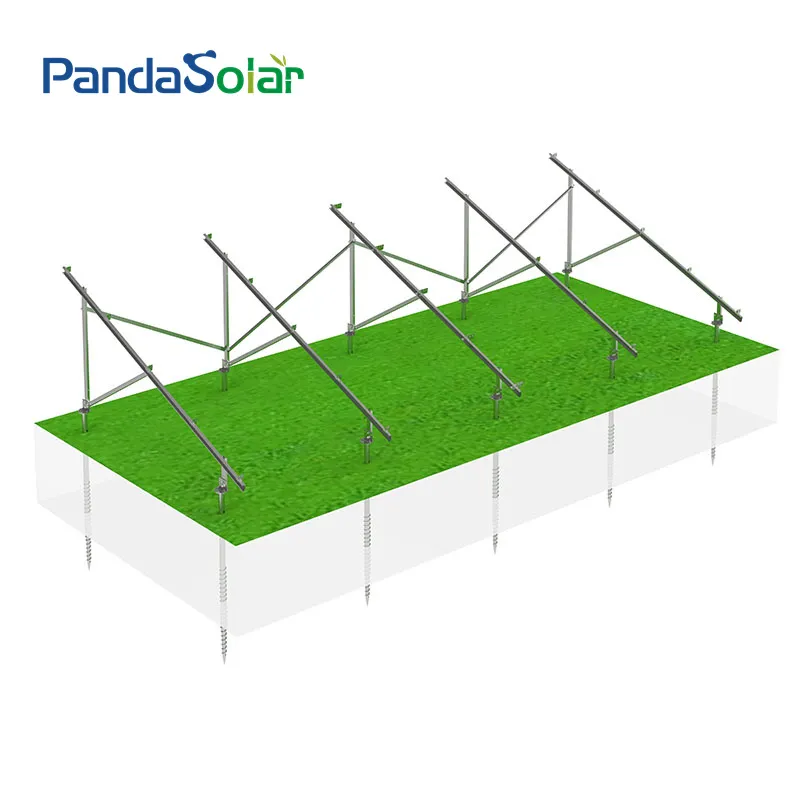

After the foundation is ready, install the beams. Connect the diagonal support pole to the top of the pole using bolts and nuts securely.

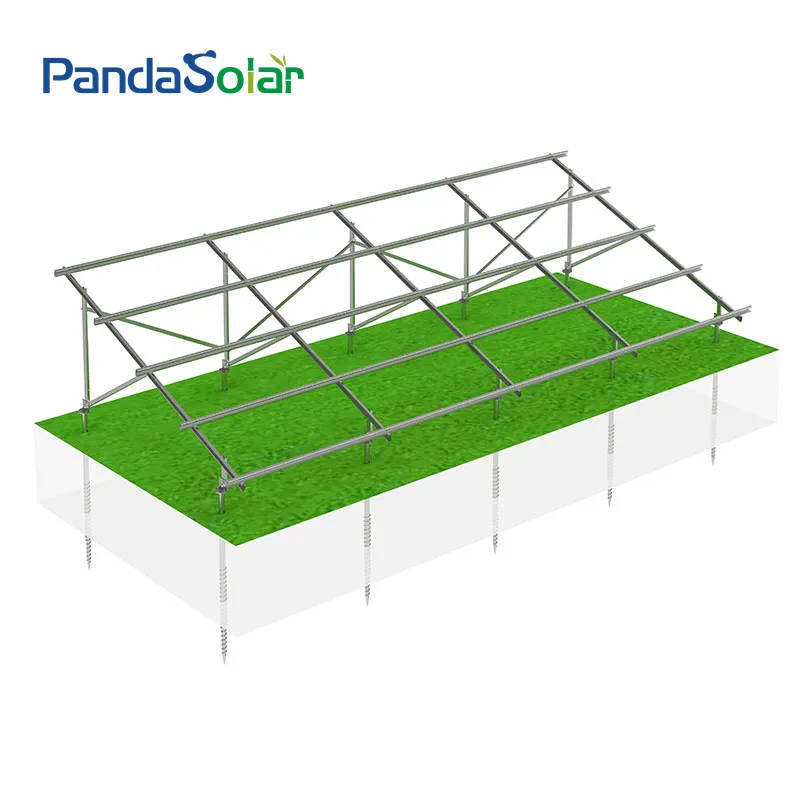

Attach the rails that support the solar panels to the beams using brackets and bolts. Ensure the rails are perfectly level.

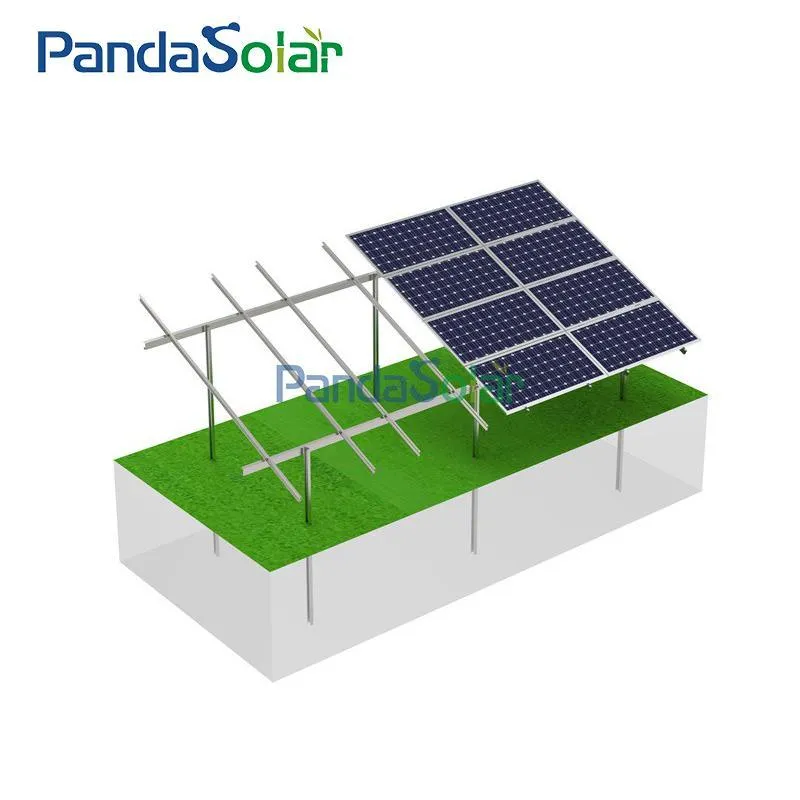

Finally, attach the solar panels to the rails using mounting hardware, ensuring each panel is securely fastened.
| Material | Structure: Mg-Al-Zn & AL-6005-T5; Components: SUS304 |
| Application | Commercial and Residential installation |
| Tilt Angle | 0-60° |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-150cm |
| Ground Clearance | 0-1m |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 years |
