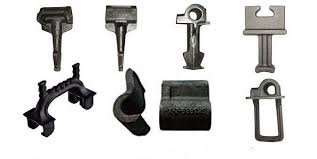

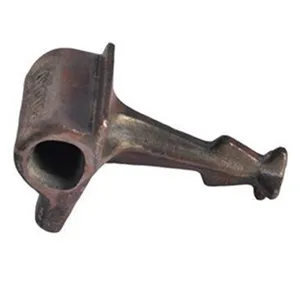

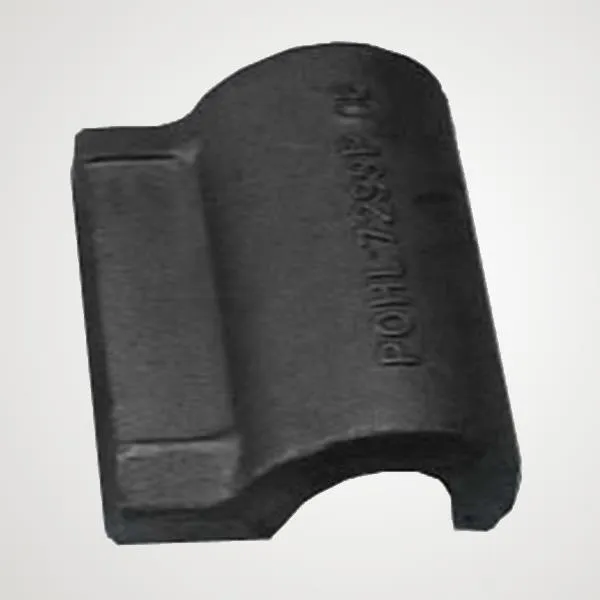

Rail shoulder is cast in the concrete rail ties to fix the elastic rail clips. There are two types of rail shoulders available, the cast-in shoulder and the weld-on shoulder, both of which are used for the fixing of elastic rail clips.

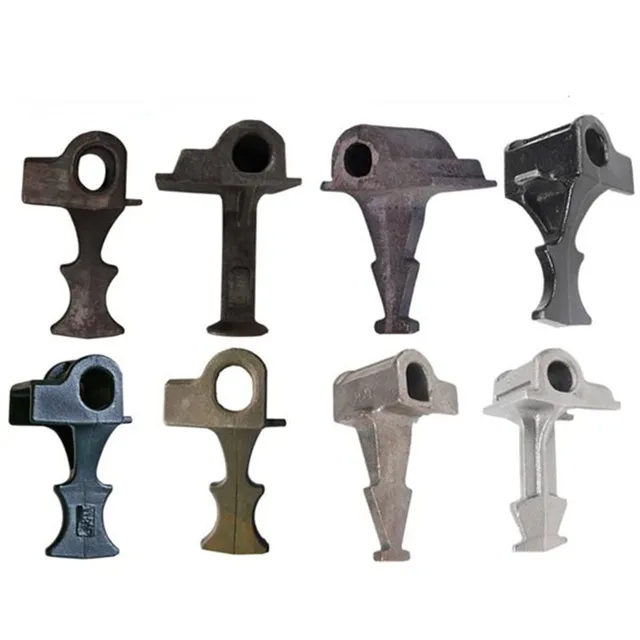

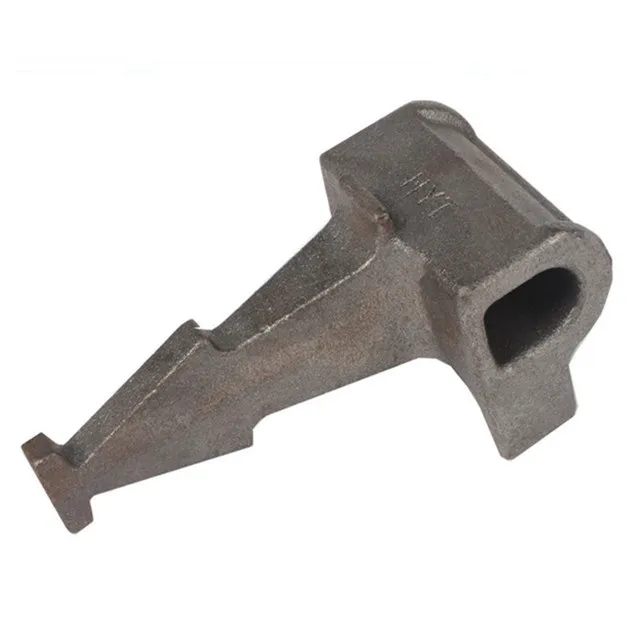

The casting shoulders as the embedded part of the rail way fastening system are pressed in concrete sleeper and work together with the E clip to fasten the rail. The cast in shoulder is made by casting from iron, such as, GB/T 1348-1988, NF EN 1563(1997), ISO1038, DIN 1693, JIS G5502 (2001), KS D 4302, GOST 7293(1985) or BS EN 1563(1997).
| Application | UIC54 | UIC60 | 115RE, 50kg, 60kg, BS80lbs, BS100lbs, etc. |
|---|---|---|---|
| Grade Name | QT500-7 | QT450-10 | QT400-15 |
| Standard | GB 1348-88 | GB 1348-88 | GB 1348-89 |
| Tensile Strength | ≥500 Mpa | ≥450 Mpa | ≥400 Mpa |
| Yield Strength | ≥320 Mpa | ≥310 Mpa | ≥250 Mpa |
| Hardness | 170~230HB | 160~210HB | 130~180HB |

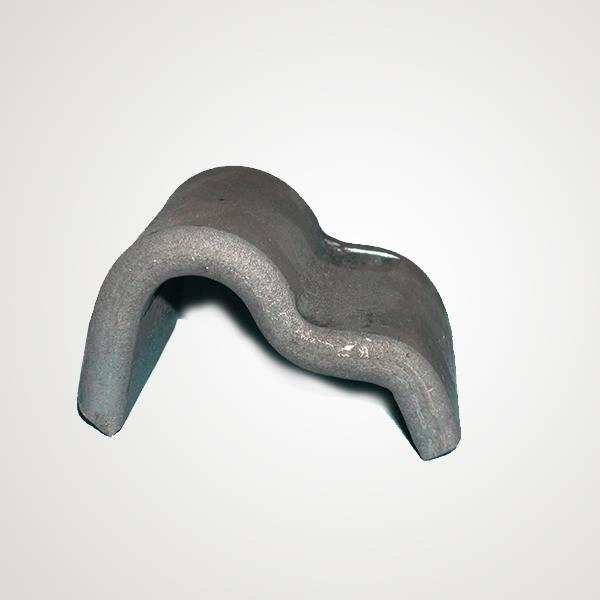

These act as the embedded part of the railway fastening system, pressed into concrete sleepers to work with E-clips. Materials follow international standards including GB/T, NF EN, ISO, DIN, JIS, and BS EN.
| Material | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) |
| QT400-15(GGG40) | 400 | 250 | 15 |
| QT450-10(GGG45) | 450 | 310 | 10 |
| QT500-7 (GGG50) | 500 | 320 | 7 |

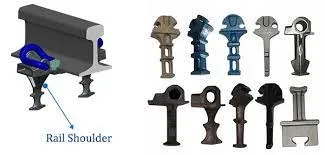

Used where the shoulder is welded onto flat steel plates rather than standard tie plates. These are produced via hot forging according to AREA standards. They are highly cost-effective for switch and crossing layouts where vertical rail geometry is required.
