Orthopedic Plates and Screws 7.3mm Cannulated Screw with Long Thread

Customization: Available
Certification: ISO, CE, ISO9001/ISO13485
Disinfection: Without Disinfection

Product Description

Basic Specifications

Model NO.
GJYDVII
Material
Titanium
Application
Trauma
Certificate
ISO13485, ISO9001, CE
Color
Transparent / Customized
HS Code
9021100000
Capacity
10000/Month
📋

Product Description

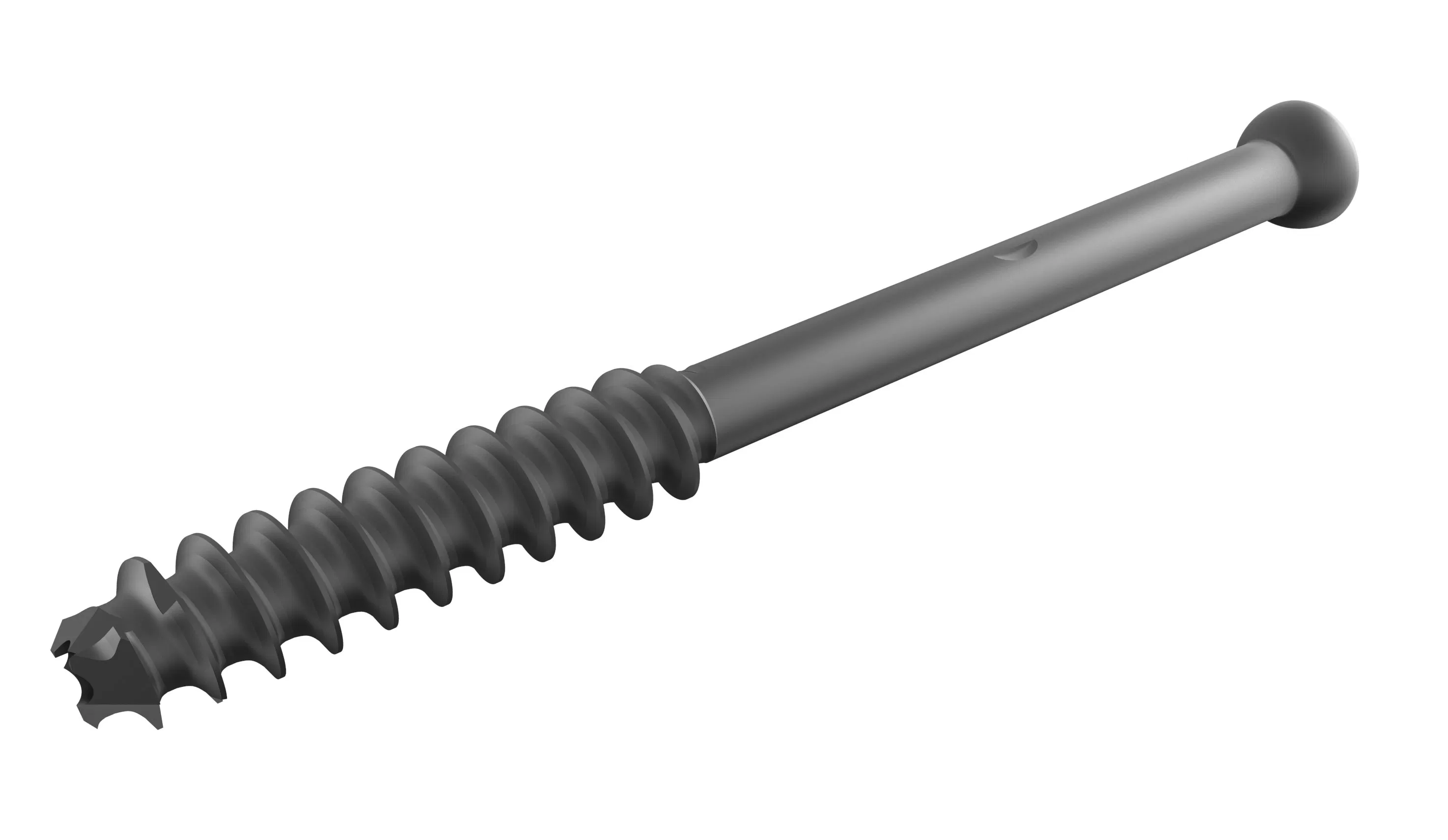

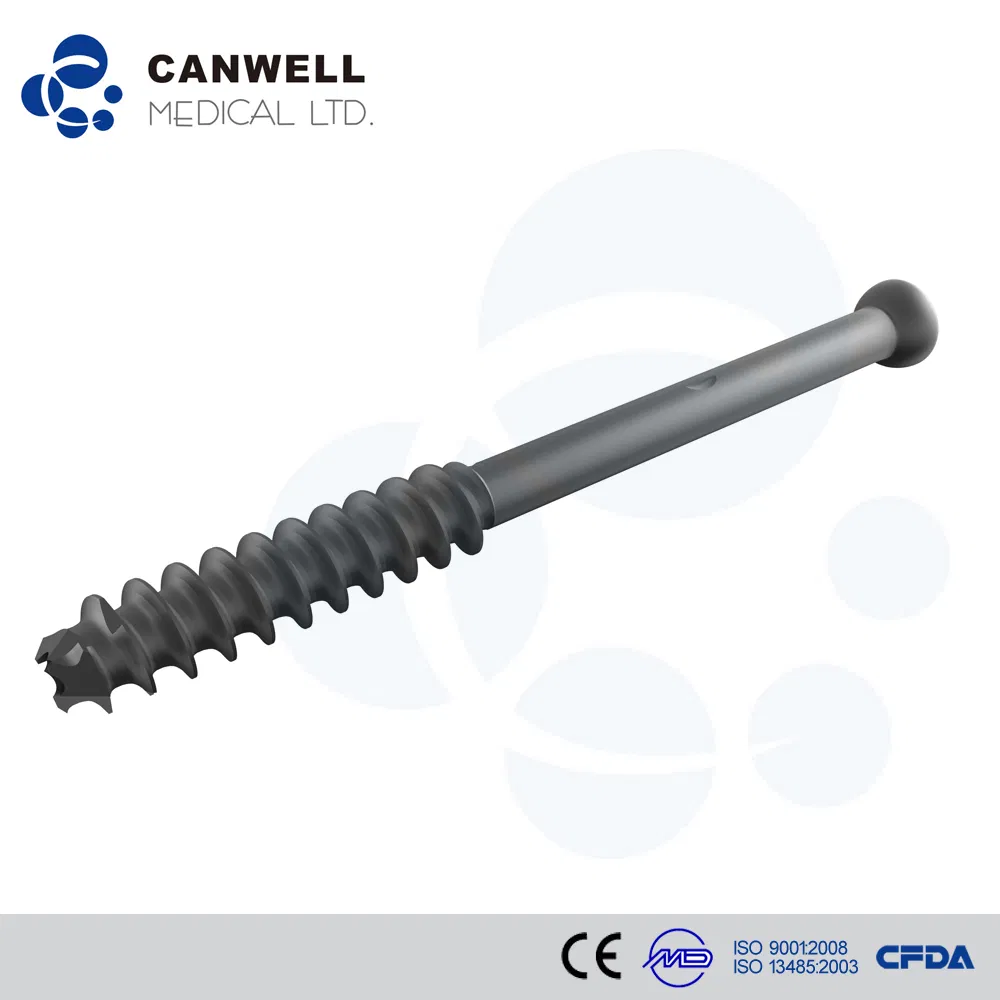

Product Name Orthopedic plates and screws 7.3mm cannulated screw
Indications • Iliosacral dislocation
• Tibial plateau fractures
• Femoral intercondylar fractures
• Femoral neck fractures
Features & Benefits
  • Cancellous thread profile for maximum pull-out resistance
  • Percutaneous insertion over a guide wire
  • Hexagonal recess for 7.3mm screw provides greater compression
  • Washer prevents screw head from sinking into bone

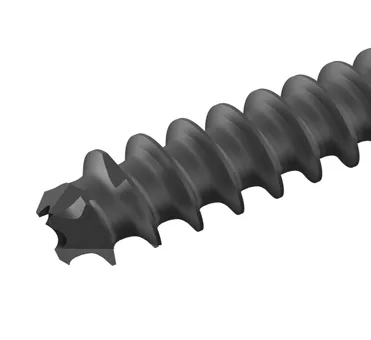

  • Self-drilling and self-tapping flutes facilitate insertion

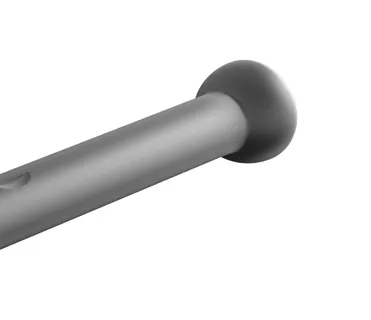

  • Low profile head lessens soft tissue irritation
  • Reverse-cutting flutes facilitate implant removal
🛠

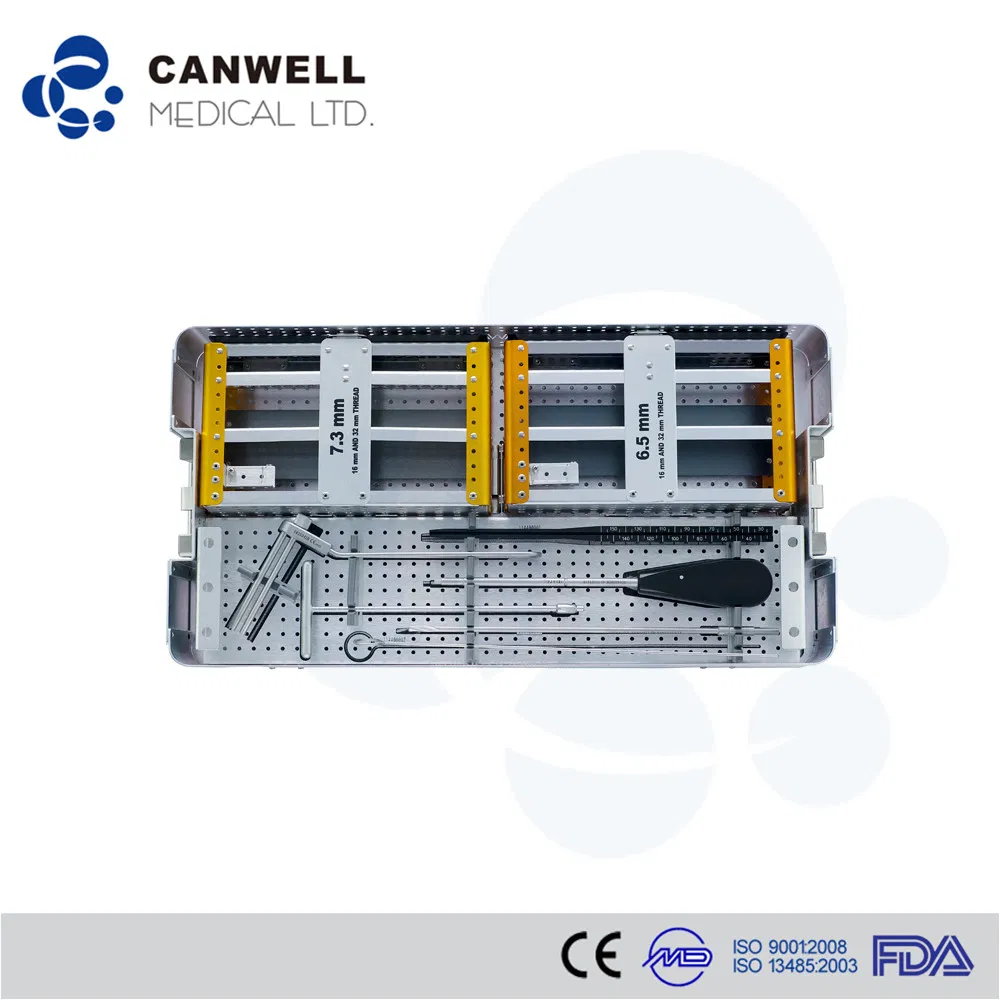

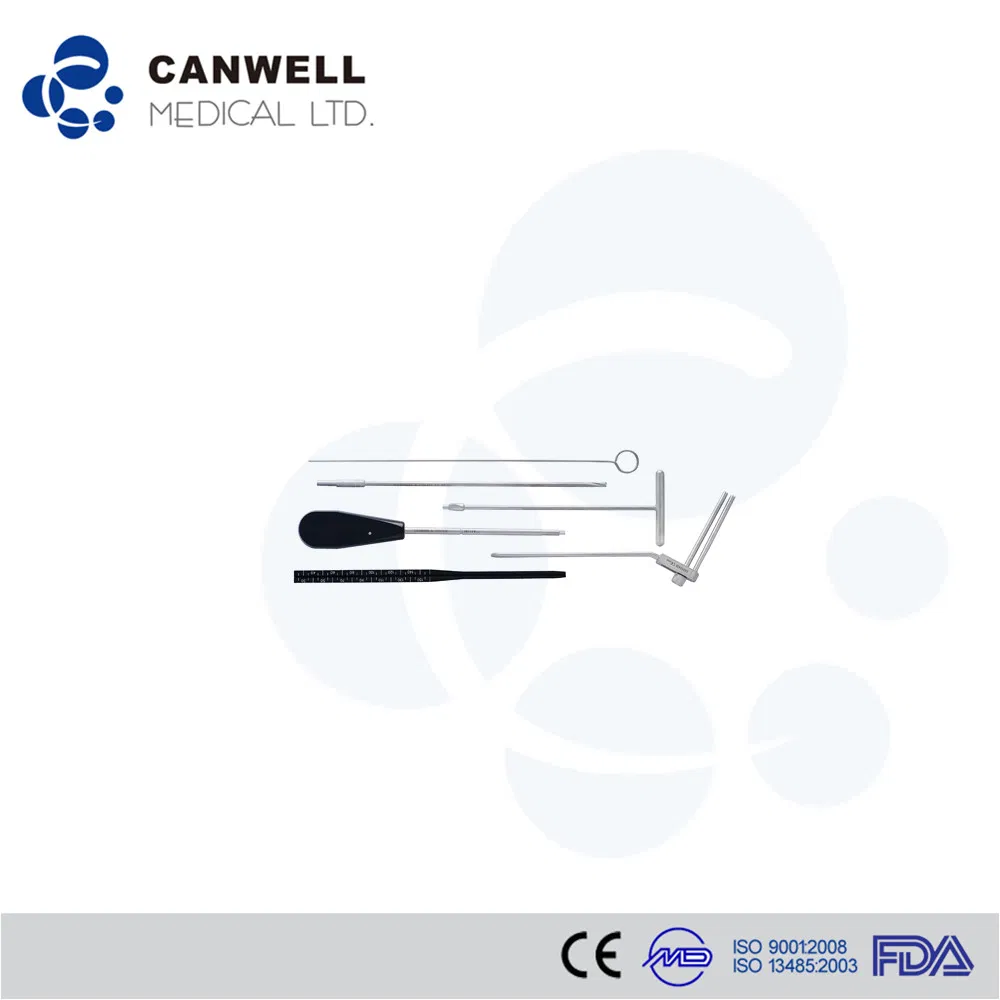

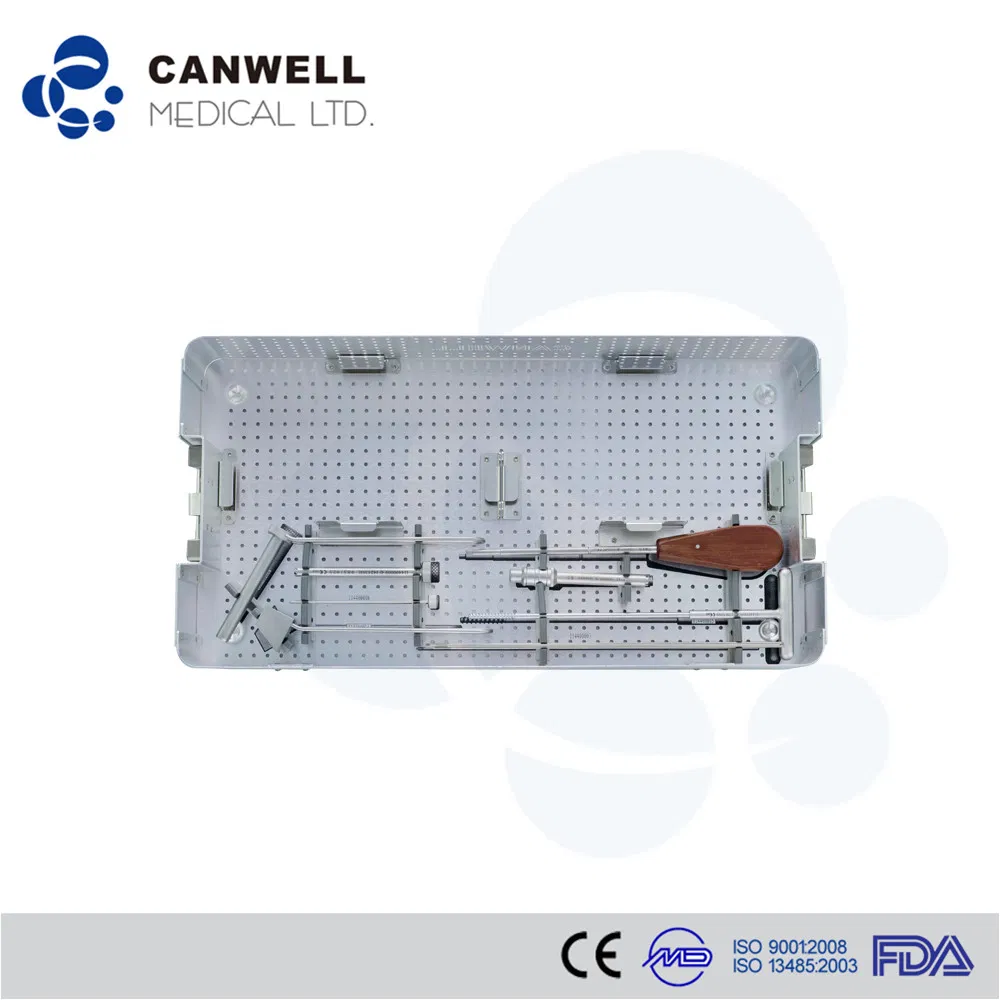

Instruments for 7.3mm Cannulated Screw

P.N Description Qty.
114400001Depth Gauge Length 330mm1
114400002φ2.5mm Cleaning Wire Length 330mm1
114400003φ2.5mm Kirschner wire Length 300mm Thread 15mm5
114400004φ5mm Drill Bit Length 300mm1
114400006SW4.0 Hexagonal Screwdriver Length 248mm1
114400012φ8 Tubular Countersink Drill Length 230mm1
114400015Tap for Cancellous Bone Tubular Screw1
👥

Professional Support

Production Team

Skilled and dedicated experts ensuring stable quality control and precision manufacturing for all orthopedic products.

Research Team

Experienced in engineering and design, focused on developing new products based on global market clinical needs.

Sales & Service

Professional management team ready to establish and maintain comprehensive sales services worldwide.

Frequently Asked Questions

What material are the 7.3mm cannulated screws made of?
The screws are manufactured from high-grade titanium, ensuring biocompatibility and strength for orthopedic applications.
What are the primary indications for this screw?
They are primarily used for iliosacral dislocation, tibial plateau fractures, femoral intercondylar fractures, and femoral neck fractures.
Does the screw support percutaneous insertion?
Yes, the cannulated design allows the screw to be inserted percutaneously over a guide wire for minimally invasive procedures.
Are self-tapping features included?
Yes, the screws feature self-drilling and self-tapping flutes which significantly facilitate the insertion process.
What certifications do these orthopedic implants hold?
Our products meet international standards including ISO 13485, ISO 9001, and CE certification.
Is OEM or customization available?
Yes, products can be customized according to specific requirements and branded via our professional OEM services.
