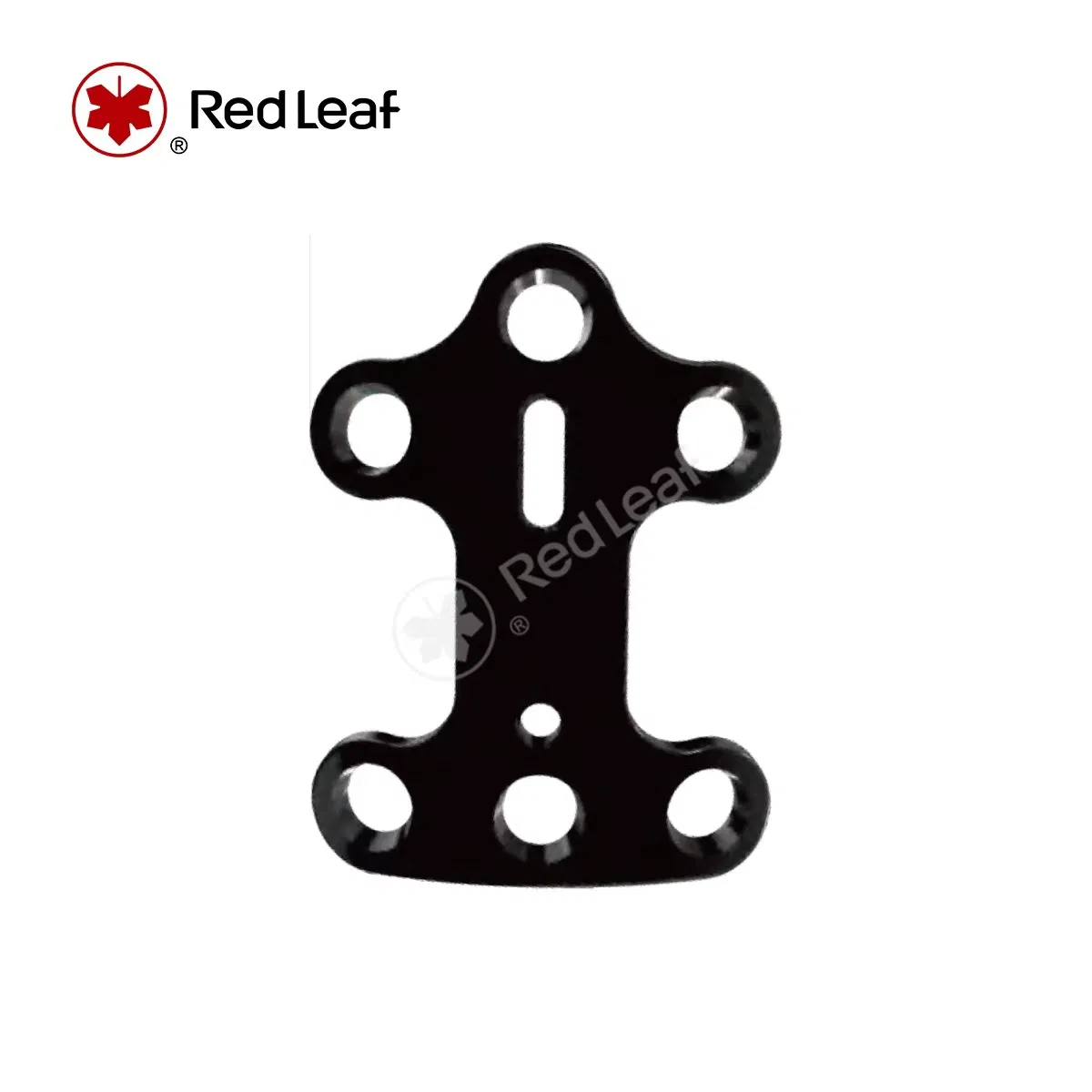

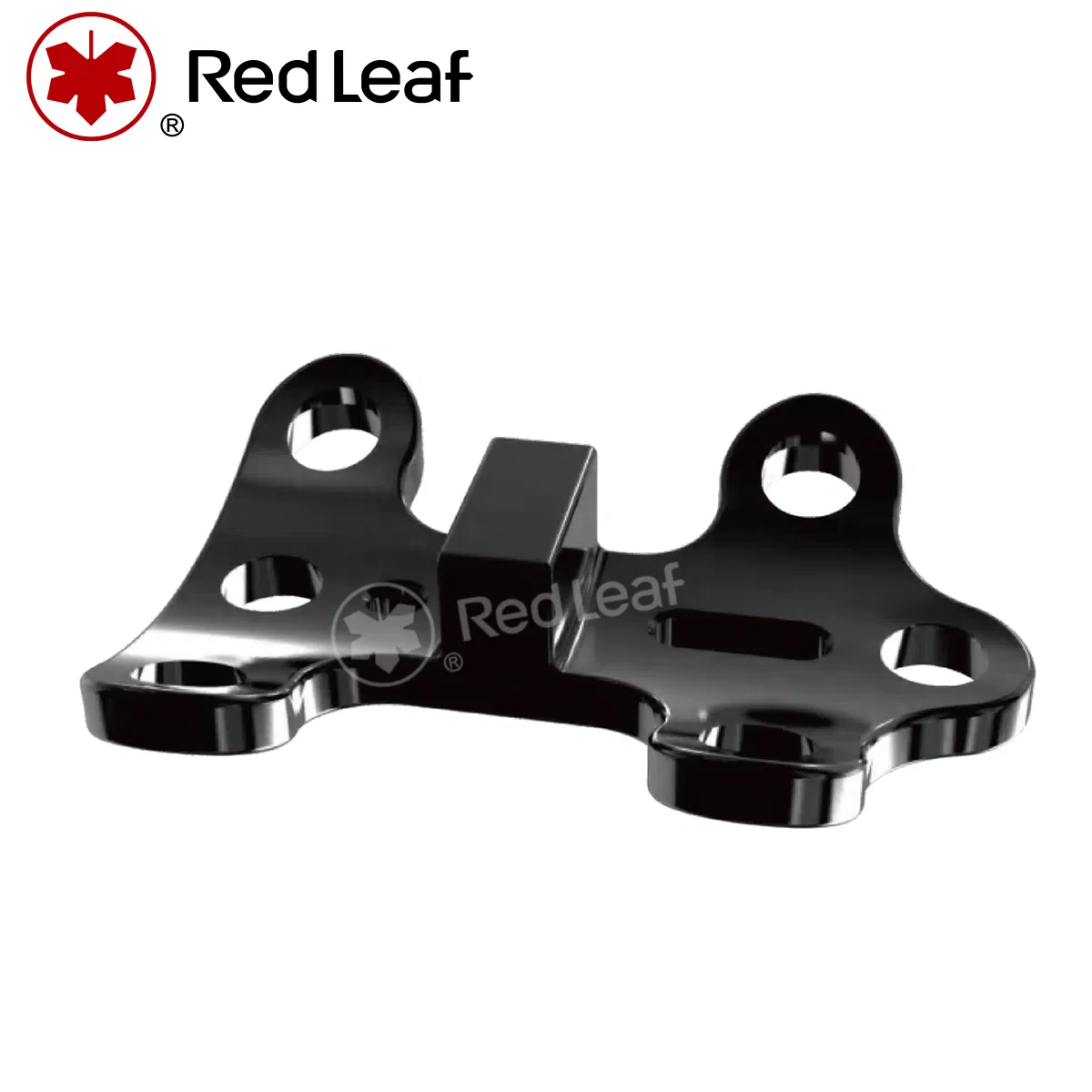

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
1 / 3
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.:Evans
Usage:Correct Deformities, Fracture Fixation
Package:Carton
Specification:30x23x2
Origin:China
★

Product Description

Orthopedic Osteotomy Locking Plate

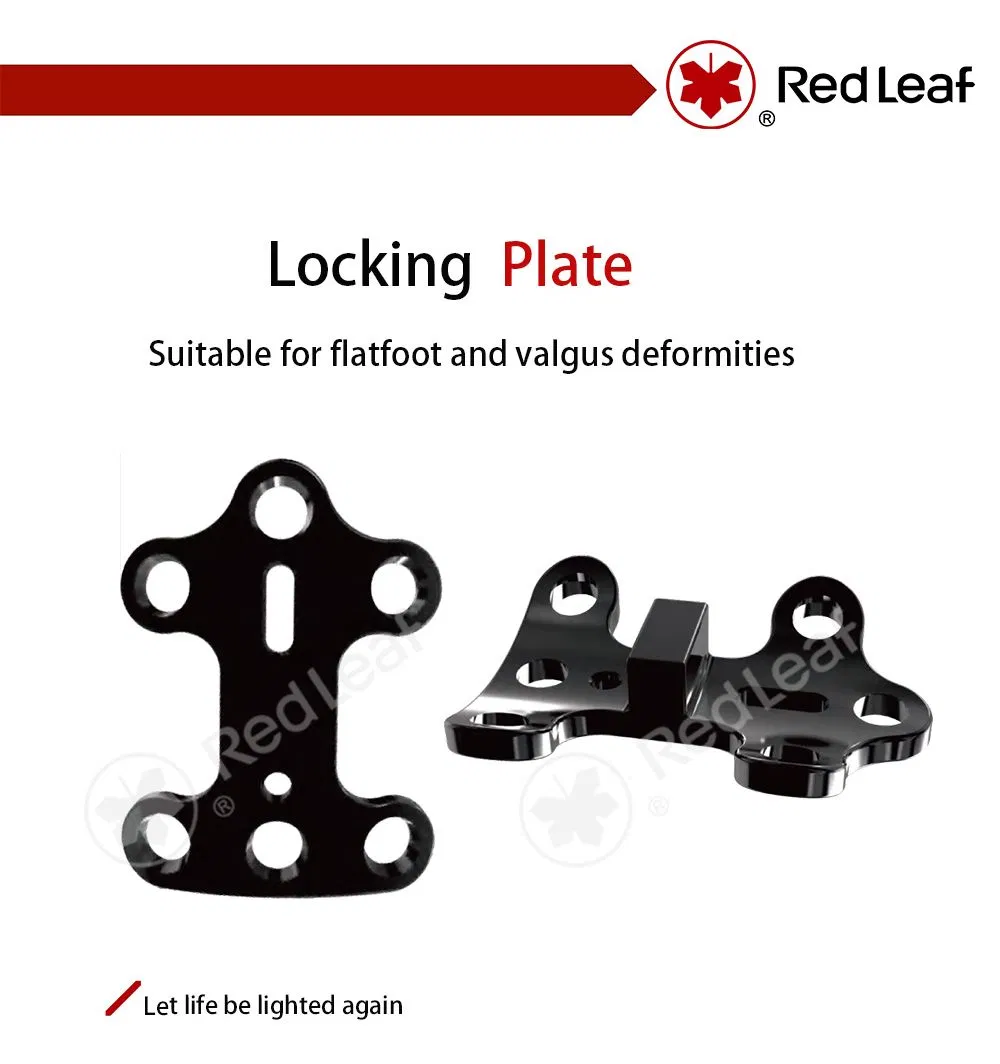

Design Details Design Concept

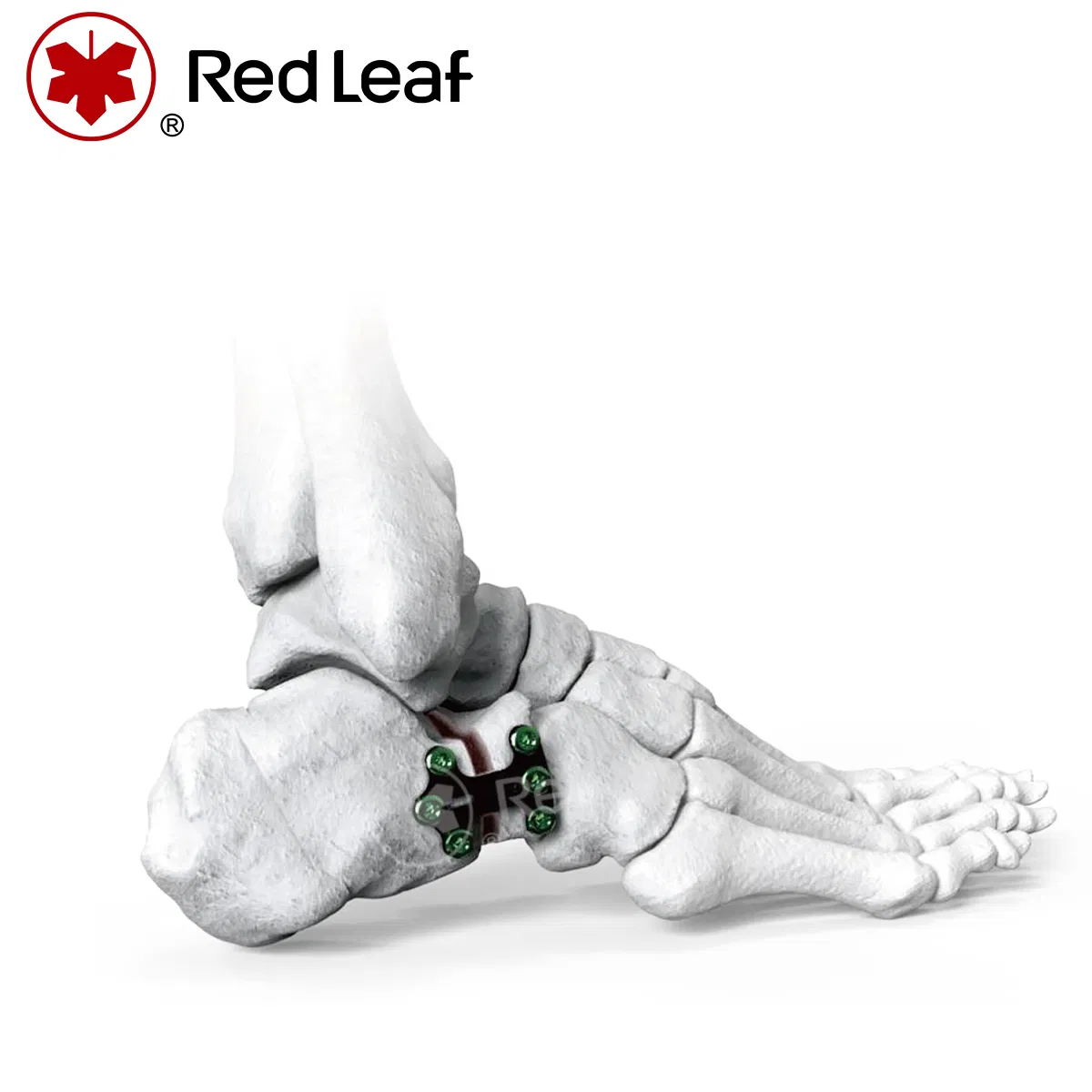

  • Suitable for flatfoot and valgus deformities
  • Transverse osteotomy of calcaneal neck
  • Distance between osteotomy surface and calcaneocuboid joint surface: 10-15mm
Key Points
  • Transverse osteotomy of the calcaneal neck with precise positioning (10-15mm).
  • Controlled cutting speed after inner cortex penetration to protect soft tissue.
  • Parallel openings to promote bone ingrowth and prevent non-union.
Screw Information
  • Matching screw: 3.5 self-tapping locking screw
  • Length: 6-40mm (2mm increments)
  • Kirschner wire: 1.9mm
  • Material: High-strength TC4 titanium alloy
📊

Product Parameters

Specifications Length (mm) Width (mm) Thickness (mm) Step Width (mm) Cushion Block Height
Big 36.0 23.0 2.0 6/8/10 6/8/10
Middle 30.0 23.0 2.0 4/6/8 4/6/8
Small 26.0 23.0 2.0 2/4/6 2/4/6
Product View 1 Product View 2
Application 1 Application 2 Application 3
?

Frequently Asked Questions

Q: What are the primary clinical applications for this locking plate?
A: This plate is specifically designed for orthopedic surgeries involving flatfoot and valgus deformities, as well as transverse osteotomy of the calcaneal neck.
Q: What material is used for the Evans locking plate?
A: The plate is manufactured from high-quality TC4 titanium alloy, offering excellent biocompatibility and mechanical strength.
Q: What type of screws are compatible with this system?
A: It uses 3.5mm self-tapping locking screws with lengths ranging from 6mm to 40mm.
Q: What quality certifications does the product hold?
A: The products are certified by CE, FDA, ISO9001, and ISO13485, ensuring compliance with international medical standards.
Q: What is the typical lead time for an order?
A: Normally, the lead time is between 15 to 25 days after the receipt of the deposit, depending on the order size.
Q: Is there a warranty provided for these medical instruments?
A: Yes, we provide a 12-month warranty from the date the products are received, including technical guidance for replacement parts.
