Basic Info
Model NO.
External Fixation
Certification
CE, ISO13485
Material Type
Titanium Alloy & Stainless Steel
Production Capacity
500,000 Pieces/Year
Product Description
Modular Fixation External Fixation System
★
Advanced technology paired with convenient usage for complex fractures.
★
Independent arrangement of bone screws in proximal and distal fracture regions.
★
Snap-fit design for easier operation and significantly reduced surgical time.
★
Medical aluminum carbon fiber components enhance fracture visibility and sharpness under imaging.
★
Optimized stability and elasticity for effective bone healing.
★
Compact frame design addressing soft tissue loss and fracture complexity.

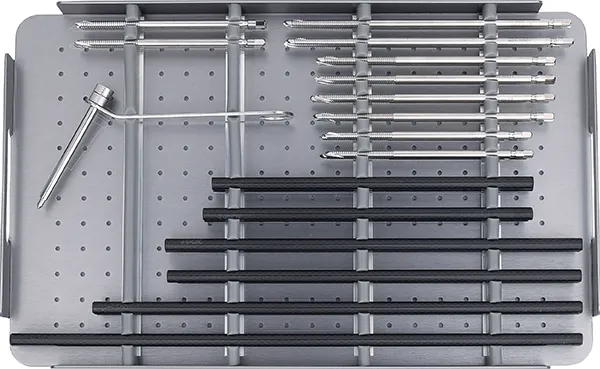

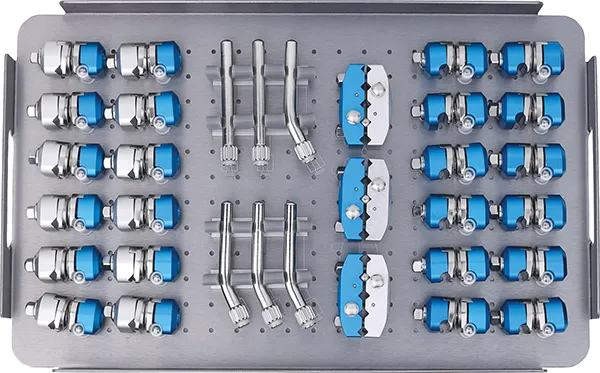

System Components List
| Description |
Specification |
Quantity |
| Pin To Rod Coupling | φ8/4-5 | 12 |
| Rod To Rod Coupling | φ8/8 | 12 |
| 5-Hole Pin Clamp | φ8/5 | 3 |
| Straight Post | φ8 | 2 |
| 30° Post | φ8 | 4 |
| Self Drilling/Self Tapping Bone Screws | φ5*180 / 150 / 130 / 120 | 20 total |
| Guides | φ4/5 | 1 |
| Carbon Fibre Rod | φ8*350 / 300 / 250 / 200 | 12 total |
| Semi-Circular Curved Connecting Rod | φ8*160 / 200 | 2 |
| T-Wrench / Stabilization Wrench | #7 / #22 | 2 |

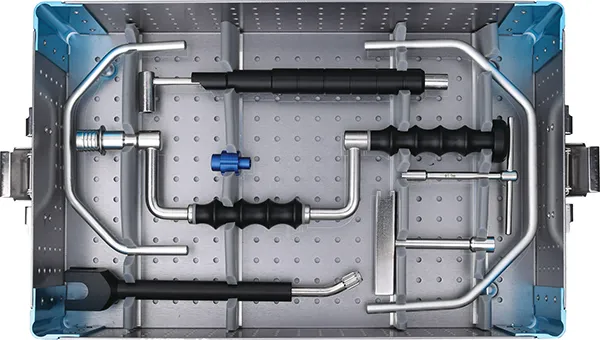

| Instrument Set (Hand Drill, Screw Driver, etc.) | - | 1 set |
Specialized Fixator Configurations

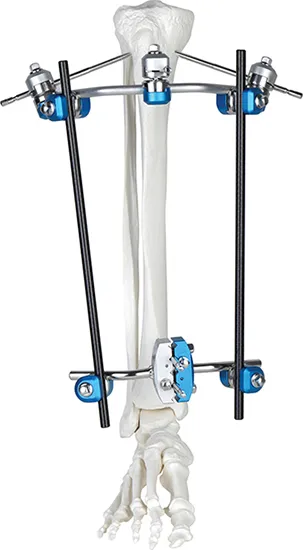

Proximal Tibia External Fixator
- Rod to Rod Coupling φ8/8 (4 Pcs)
- Pin To Rod Coupling φ8/4-5 (3 Pcs)
- 5-Hole Pin Clamp φ8/5 (1 Pc)
- Semi-Circular Curved Rod (1 Pc)
- Carbon Fibre Rods & Bone Screws

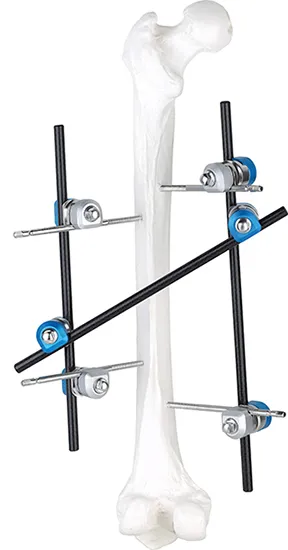

Femoral Shaft Fixator
- Rod To Rod Coupling φ8/8 (2 Pcs)
- Pin To Rod Coupling φ8/4-5 (4 Pcs)
- Carbon Fibre Rods 8*200mm & 8*250mm
- Self Drilling Bone Screws 5*150mm
Half Ring Fixator (Standard)
- Rod To Rod Coupling φ8/8 (6 Pcs)
- 5-Hole Pin Clamp φ8/5 (2 Pcs)
- 30° Post φ8 (4 Pcs)
- Used For Tibia Perone fractures

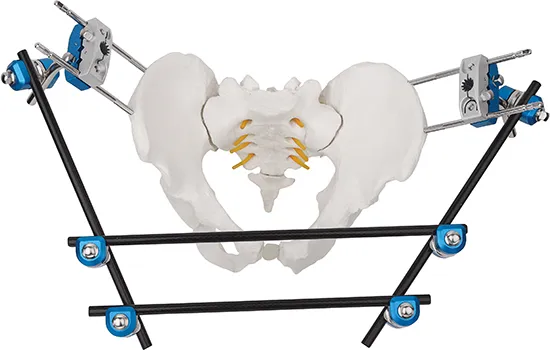

Pelvic Fixator
- Rod To Rod Coupling (6 Pcs)
- 5-Hole Pin Clamp (2 Pcs)
- 30° Post (2 Pcs)
- Specifically designed for Pelvic trauma

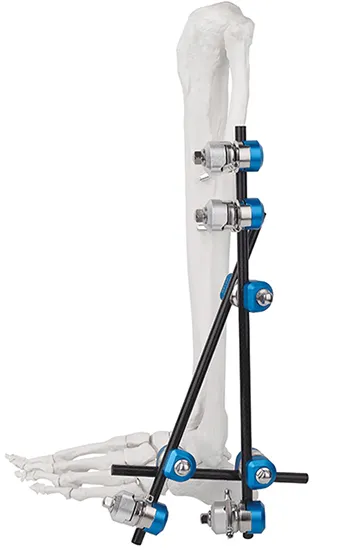

Ankle Joint Fixator
- Pin To Rod Coupling φ8/4-5 (4 Pcs)
- Carbon Fibre Rod 8*250mm & 8*200mm
- Screws 5*150mm & 4*130mm
- Optimized for Ankle stabilization
Frequently Asked Questions
What materials are used in the External Fixator system?
The system utilizes high-grade Titanium Alloy and Stainless Steel for structural components, while rods are made of medical aluminum carbon fiber to ensure both strength and radiolucency.
Are the components of this system reusable?
Yes, the basic information specifies that the feature of this system is reusable, allowing for sterilization and multi-use according to medical protocols.
What are the advantages of using Carbon Fiber rods?
Carbon fiber rods provide excellent stability and elasticity. Importantly, they enhance the sharpness of fracture vision under X-ray imaging, allowing surgeons to monitor the healing process more effectively.
Does the system support different anatomical fixations?
Yes, the modular design includes specialized configurations for the Proximal Tibia, Femoral Shaft, Pelvis, Ankle Joint, and Proximal Femur.
How does the "snap-fit" design benefit the surgery?
The snap-fit design allows for faster assembly of the frame during operation, simplifying the procedure for the surgical team and reducing the overall time the patient spends in surgery.
What certifications does this orthopedic system have?
The system is fully compliant with international medical standards, holding both CE and ISO13485 certifications.
