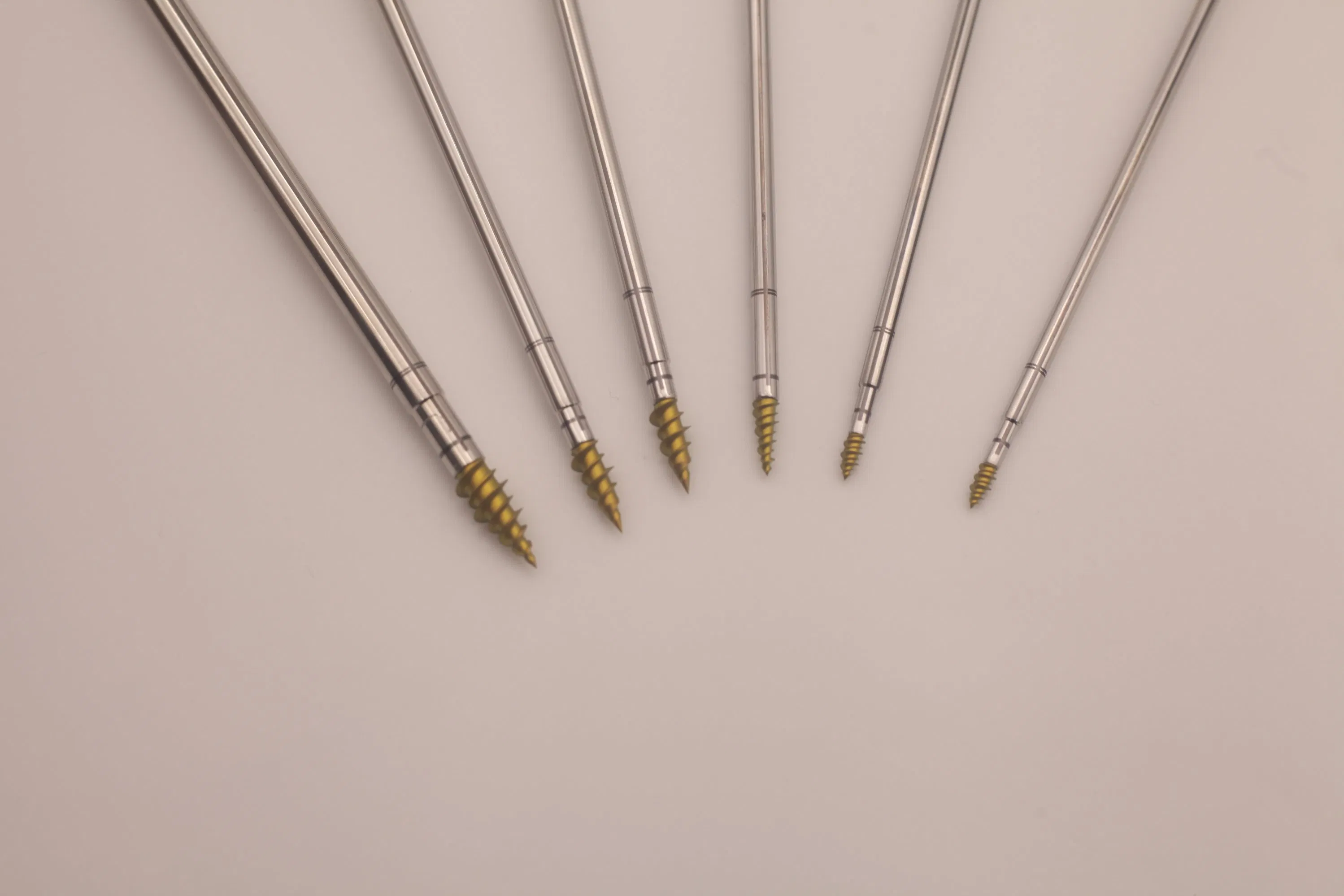

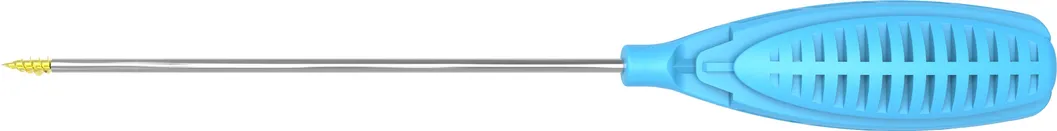

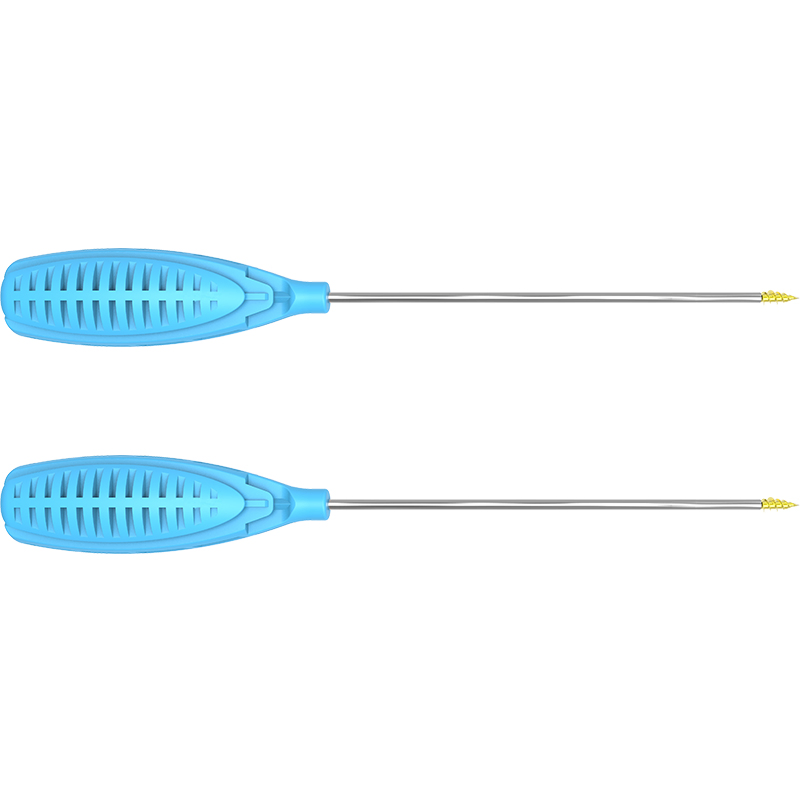

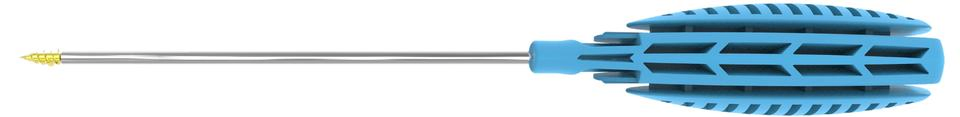

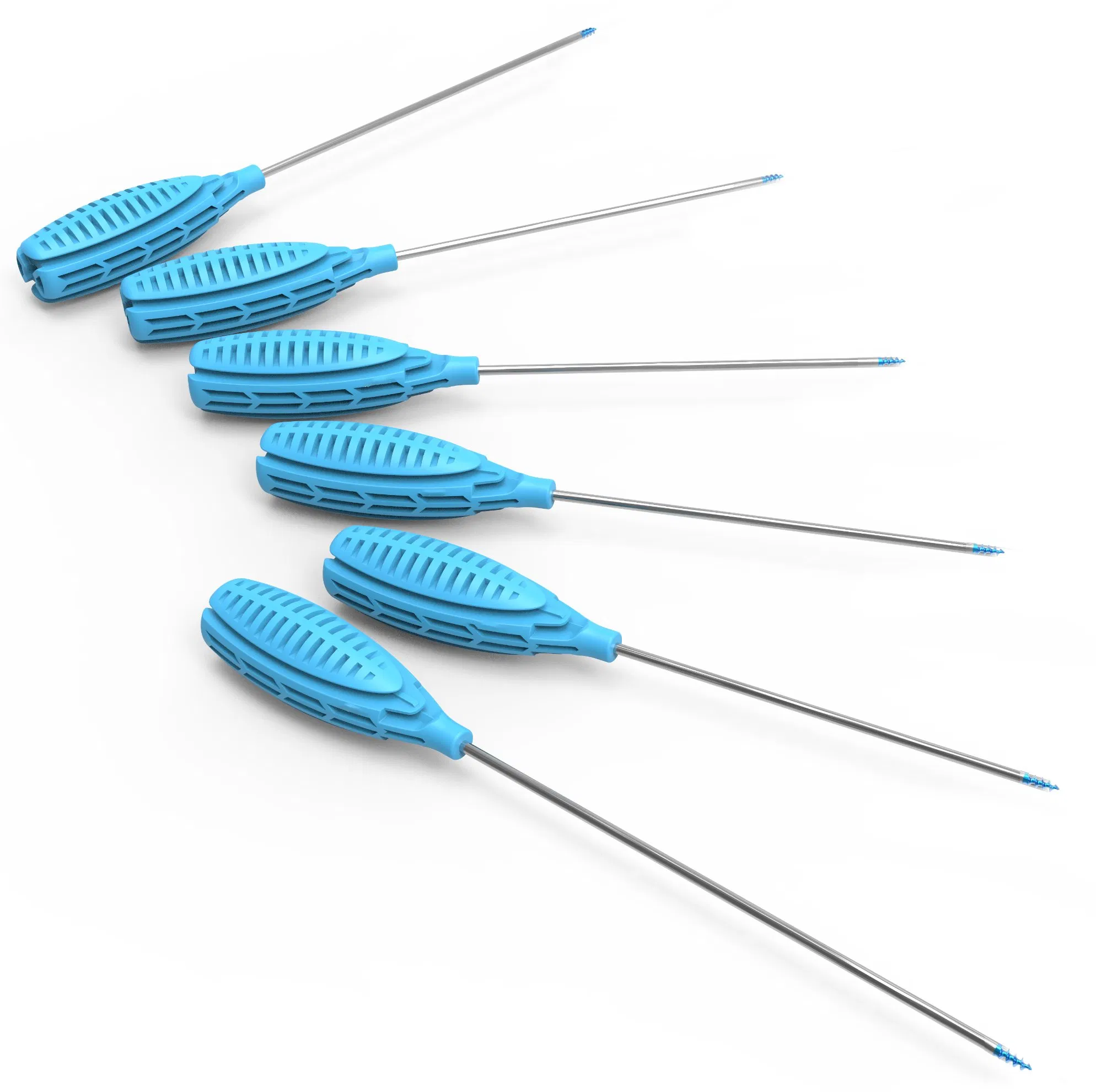

A suture anchor is a very small implant that fixes sutures in the bone and reconnects the soft tissue and bone. It is a fully threaded anchor with suture holes running through the center of the anchor to provide flexibility for working sutures. Allows to reduce bone removal during the guide hole creation process without affecting the pullout strength.
| Model | Anchor (mm) | Suture | ||
|---|---|---|---|---|
| External Diameter | Anchor Length | Total Length | Specification | |
| T20-φ2.0x7.5 | φ2.0 | 7.5 | 184.3 | 2 0# sutures |
| T12-φ2.8x11.5 | φ2.8 | 11.5 | 251.4 | 1 2# suture |
| T22-φ3.5x12 | φ3.5 | 12 | 255.2 | 2 2# sutures |
| T22-φ5.0x15.5 | φ5.0 | 15.5 | 257.5 | 2 2# sutures |
| T22-φ6.5x16.3 | φ6.5 | 16.3 | 260.7 | 2 2# sutures |

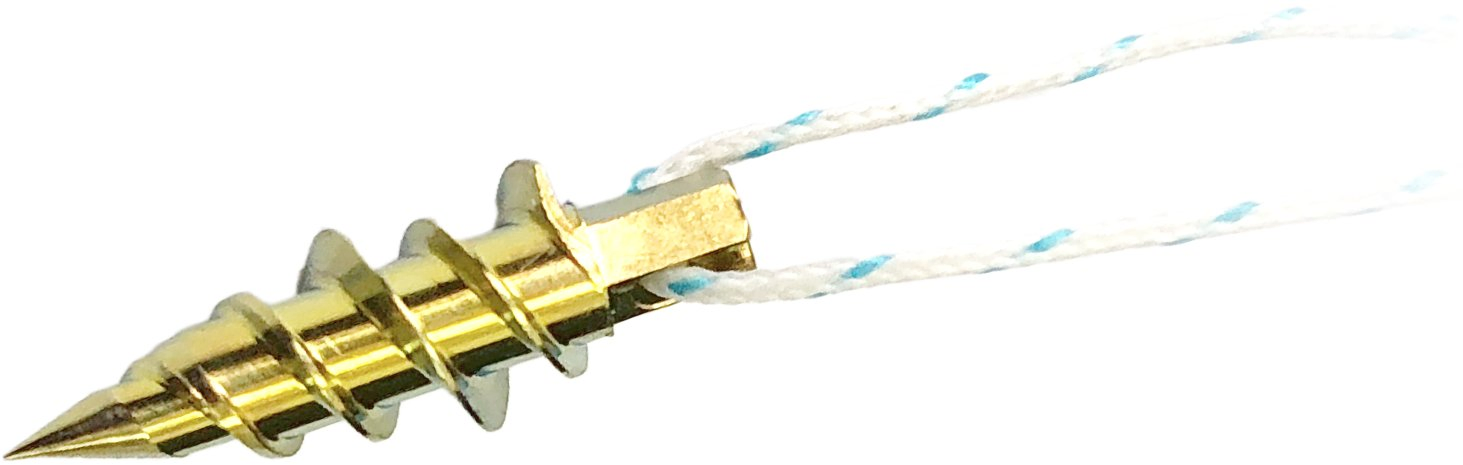

Scope of Use: Suture Anchors are surgical implants used for the attachment of soft tissues to bone, such as ruptured tendons and ligaments. They are composed of the anchor, a suture, and the eyelet interface.
Composition Characteristics: The suture uses ultra-high molecular weight polyethylene and polyester composite braid, providing superior mechanical properties and handling during procedures.
